Rule setting

Quick start step 5

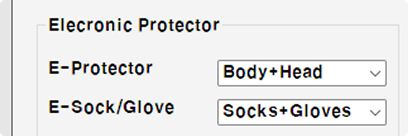

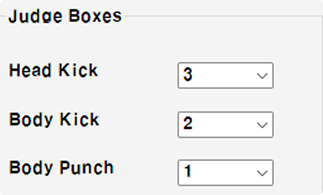

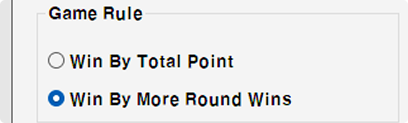

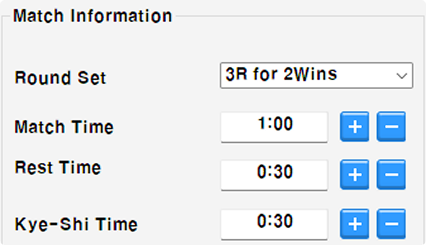

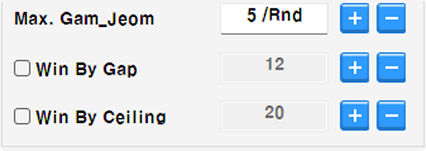

  • Rule Custom

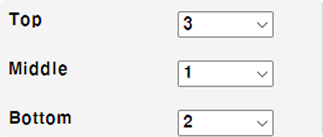

  • Please set detailed rules for the match,
    from how to win the match to the time.
    • Hover your mouse over the screen to see the description
    After settings, Don't forget to click!

    Connect and setting

    Quick start step 5
  • Connection management

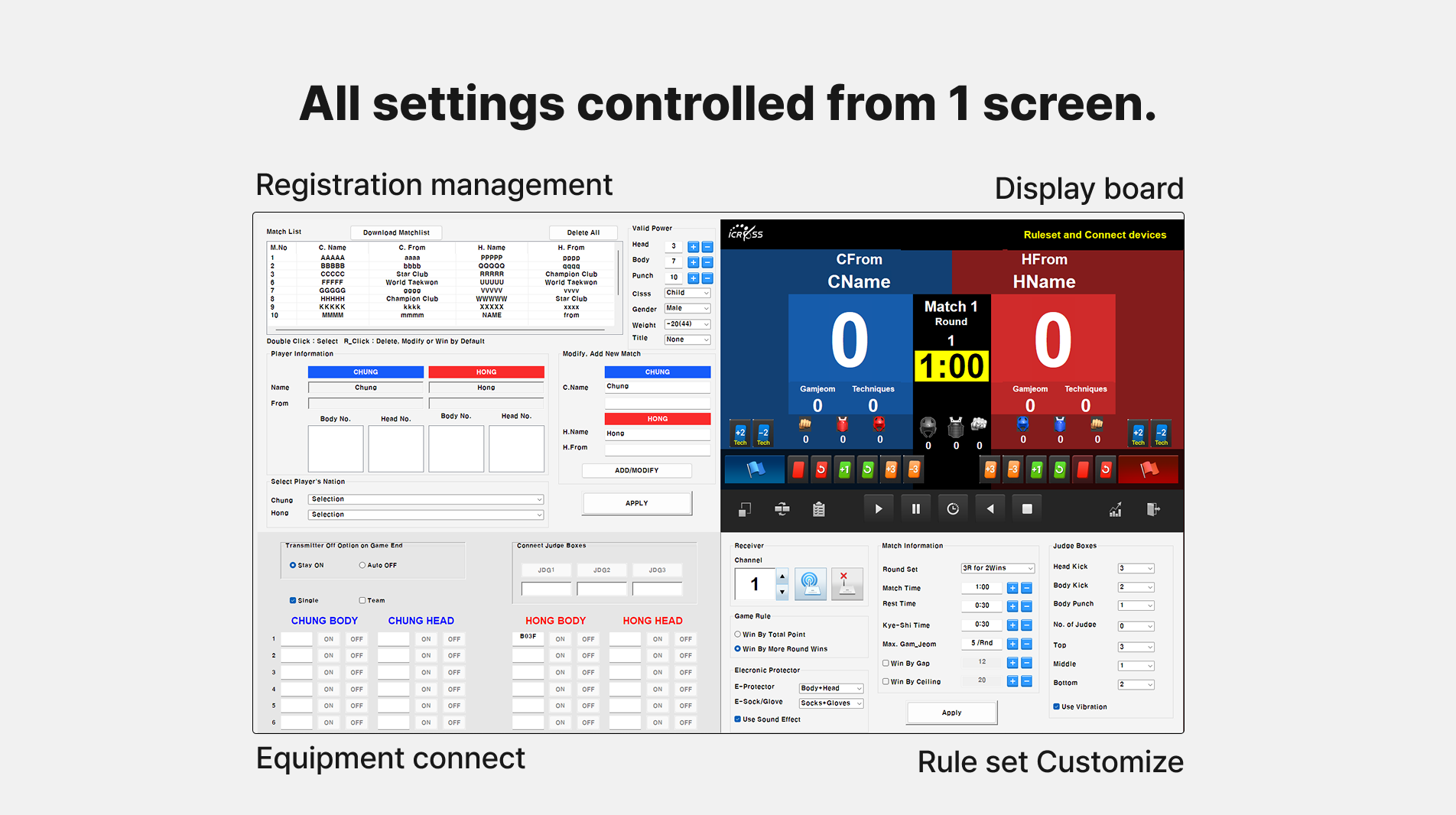

  • Connect all device for match and manage at a Glance
    You can check the battery of using device.
    • Hover your mouse over the screen to see the description

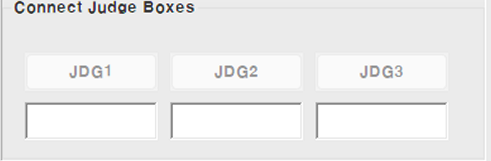

    #How to connect judge box

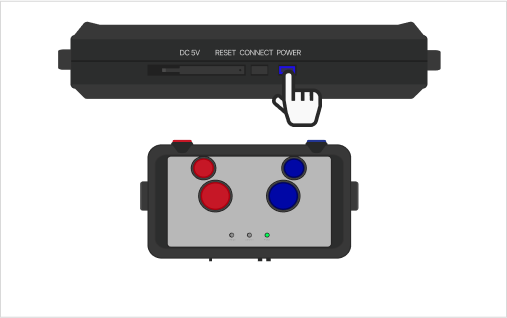

    Press the power button for 2-3 seconds and the light will turn on.

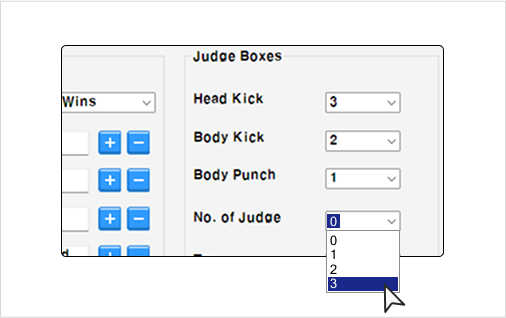

    Select the number of judge.

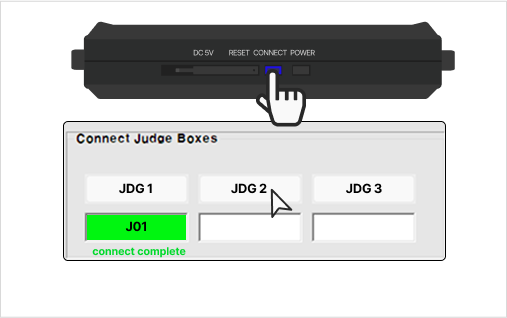

    Press the 'CONNECT' button and when you hear a beep, click the PC button.

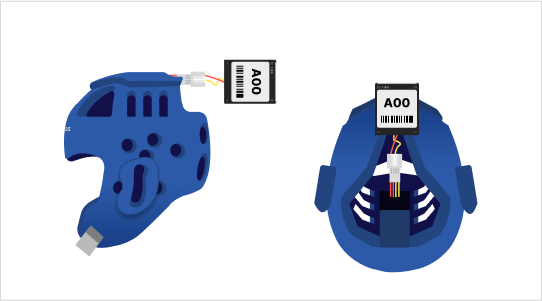

    #How to connect Headgear

    Transmitter is hear
    In both cases, Press the power button and the light will turn on.

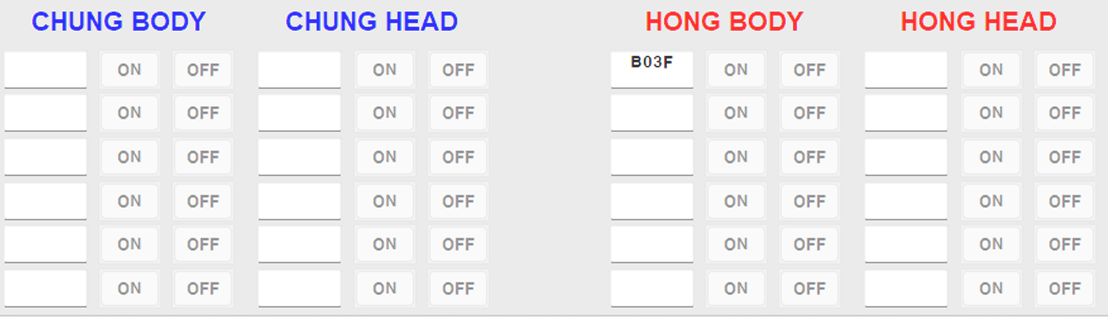

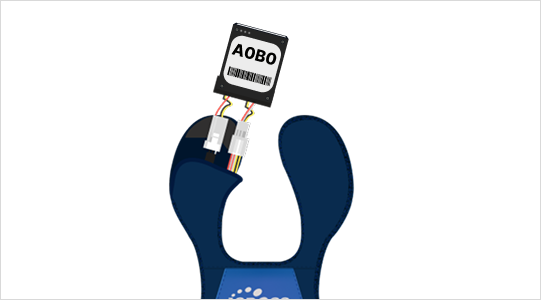

    #How to connect Body protector

    Transmitter is hear

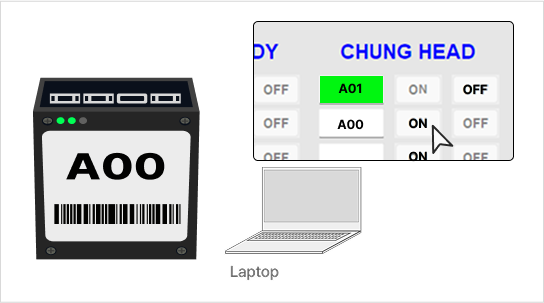

    Enter the transmitter number on your PC and click the Connect button.

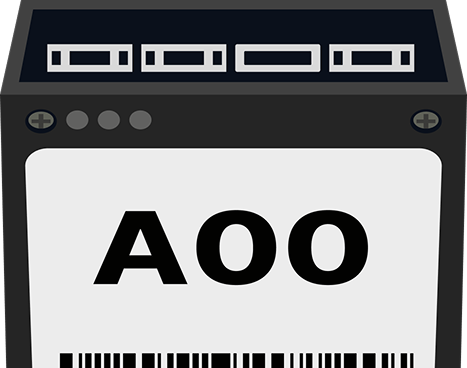

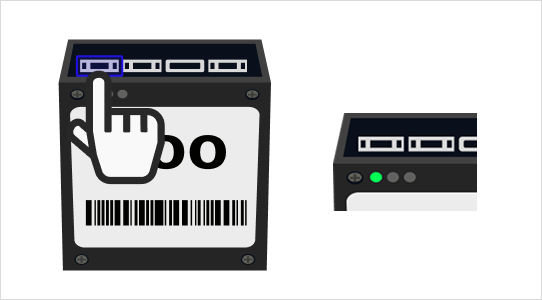

    #Transmitter button

    Power

    Press it for 2-3 seconds and the light will turn on.

    Connect

    Press the 'CONNECT' button and when you hear a beep, click the PC button.

    Charge

    Where to connect the charger.
    The new version is C type and the old version is 5 pin.

    Reset

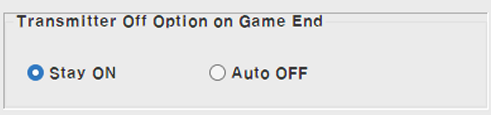

    This is a button to turn off the device. It is not very useful because the power is turned off when the program is closed.
    For single match,
    Only devices that have clicked the Select button will be used.
    Don't forget to click select!

    Add and check Registration

    Quick start step 5

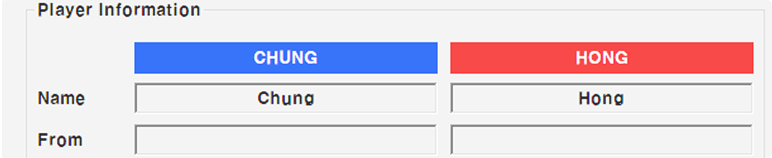

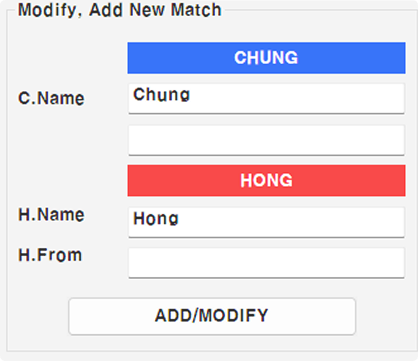

  • Match and player settings

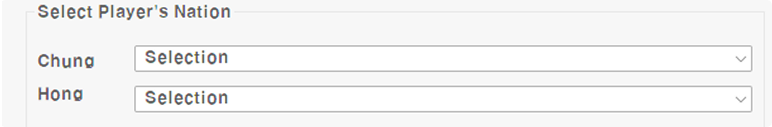

  • Enter information about the player and match.
    When you click the Apply button, the Screen will be modified.

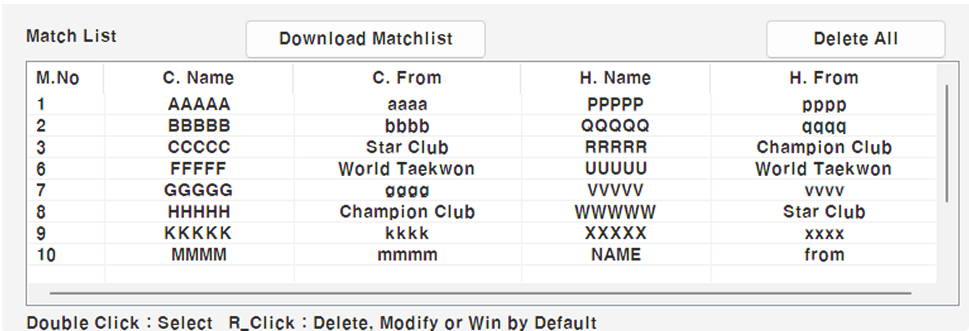

    You can easily manage list by import an Excel file.
    • Hover your mouse over the screen to see the description
    After settings, Don't forget to click!

    Test the device

    Quick start step 5
  • Testmode
  • Test your device before the match start.
    • Enter test mode Test by hitting

    Start

    Quick start step 5
  • Start the match now
  • Click Start to begin.
